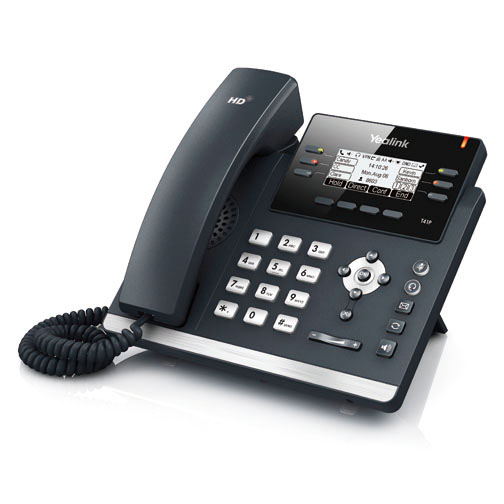

Yealink SIP-T41P inc PSU

RRP:$ 177 + GST

- +

Add to cart

The SIP-T41P is Yealink's latest T4 series SIP business phone. Optimised for ease of use and delivering superb sound quality, the SIP-T41P's revolutionary design features 18 on-screen programable buttons for fast, intuitive call handling.

Features

Revolutionarily new design
Yealink Optima HD voice
2.7" 192x64-pixel graphical LCD with backlight
Up to 6 SIP accounts
Paper label free design
PoE support
Headset, EHS support
Integrated stand with 2 adjustable angles
Wall mountable
Simple, flexible and secure provisioning options

Display

2.7" 192x64-pixel graphical LCD with backlight
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number

Interfaces

2xRJ45 10/100M Ethernet ports
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port
1XRJ12 (6P6C) EHS port
Power over Ethernet (IEEE 802.3af), Class 2

Specifications

Audio Features
HD voice: HD handset, HD speaker
Wideband codec: G.722
Narrowband codec: G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
6 VoIP accounts
One-touch speed dial, redial
Call forward, call waiting
Call transfer, call hold
Call return, group listening
Mute, auto answer, DND
3-way conference call
Direct IP call without SIP proxy
Ring tone selection/import/delete
Hotline, emergency call
Set date time manually or automatically
Dial Plan
XML Browser
Action URL/URI
RTCP-XR （ RFC3611）,VQ-RTCPXR（ RFC6035）

Directory
Local phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded

Keys

6 line keys with LED
6 line keys can be programmed up to 15 various features (3-page view)
5 features keys: message, headset, mute, redial, hands-free speakerphone
4 context-sensitive “soft” keys
6 navigation keys
2 volume control keys
Illuminated mute key
Illuminated headset key
Illuminated hands-free speakerphone key

Additional

Directory
Local phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded

IP-PBX Features
Busy Lamp Field (BLF)
Bridged Line Apperance(BLA)
Anonymous call, anonymous call rejection
Hot-desking
Message Waiting Indicator (MWI)
Voice mail
Call park, call pickup
Intercom, paging
Music on hold
Call recording

Other Physical Features
Stand with 2 adjustable angles
Wall mountable
External universal AC adapter (optional):
AC 100~240V input and DC 5V/1.2A output
Power consumption (PSU): 1.1-2.3W
Power consumption (PoE): 1.7-3.2W
Dimension(W*D*H*T):
212mm*189mm*175mm*54mm
Operating humidity: 10~95%
Operating temperature: -10~50°C

Management
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
BroadSoft device management
Zero-sp-touch TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log

Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT transverse: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
IPv6
CDP (Cisco Discovery Protocol)

Giftbox size

246mm * 223mm * 120mm

Carton Meas

627mm * 256mm * 235mm
