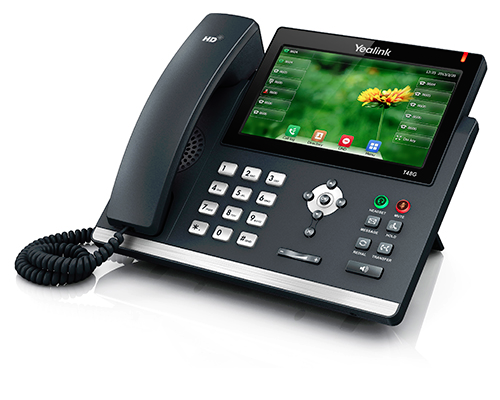

Yealink SIP-T48G inc PSU

RRP:$ 399 + GST

- +

Add to cart

The T48G is built for the Gigabit Ethernet and facilitates very rapid call handling and the application of accessories such as a Bluetooth USB Dongle, plus wired and wireless headsets. The new IP Phone supports impressive productivity-enhancing features too which make it the natural and obvious efficiency tool for today’s busy executives and professionals.

Features

Display

Interfaces

Specifications

Keys

Additional

Features

> Revolutionarily new design

> Yealink Optima HD voice
> Dual-port Gigabit Ethernet
> PoE(802.3af) class support
> 7" 800 x 480-pixel color touch screen with backlight
> Wi-Fi via WF40
> Bluetooth via BT40
> USB recording
> Up to 16 SIP accounts
> Paper label free design
> Headset, EHS support
> Supports expansion modules
> Wall mountable
> Simple, flexible and secure provisioning options

Specification

Audio Features
> HD voice: HD handset, HD speaker
> Codecs: G.722, G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
> DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
> Full-duplex hands-free speakerphone with AEC
> VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
> 16 VoIP accounts
> Call hold, mute, DND
> One-touch speed dial, hotline
> Call forward, call waiting, call transfer
> Group listening, emergency call
> Redial, call return, auto answer
> 3-way conferencing
> Direct IP call without SIP proxy
> Ring tone selection/import/delete
> Set date time manually or automatically
> Dial plan, XML Browser, action URL/URI
> RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

> USB port (2.0 compliant) for:
Bluetooth earphone through BT40,
Wi-Fi through WF40,
USB call recording through USB flash drive
> Enhanced DSS Key

Directory
> Loal phonebook up to 1000 entries
> Black list
> XML/LDAP remote phonebook
> Intelligent search method
> Phonebook search/import/export
> Call history: dialed/received/missed/forwarded

IP-PBX Features
> Busy Lamp Field (BLF)
> Bridged Line Apperance(BLA)
> Anonymous call, anonymous call rejection
> Remote office, hot-desking
> Message Waiting Indicator (MWI)
> Voice mail, call park, call pickup
> Intercom, paging, music on hold
> Call completion, call recording

> Executive and Assistant
> Centralized call recording
> Visual voice mail

Display and Indicator
> 7" 800 x 480-pixel color touch screen with backlight
> 24 bit depth color
> LED for call and message waiting indication
> Wallpaper
> Intuitive user interface with icons and soft keys
> National language selection
> Caller ID with name, number and photo

> Power saving

> Screensaver

Feature keys
> 29 one-touch DSS keys
> 7 features keys: message, headset, hold, mute,
transfer, redial, hands-free speakerphone
> 6 navigation keys
> Volume control keys
> Illuminated mute key
> Illuminated headset key
> Illuminated hands-free speakerphone key

Interface
> Dual-port Gigabit Ethernet
>Power over Ethernet (IEEE 802.3af), class 3
> 1 x USB port (2.0 compliant)
> 1xRJ9 (4P4C) handset port
> 1xRJ9 (4P4C) headset port
> 1XRJ12 (6P6C) EXT port:
Supports up to 6 Expansion Modules for an attendant
console application

Other Physical Features
> Wall mountable (optional)
> External universal AC adapter (optional):
AC 100~240V input and DC 5V/2A output
> Power consumption (PSU): 2.0-6.4W
> Power consumption (PoE):2.4-10.5W
> Dimension(W*D*H*T):
266mm*226mm*185mm*54mm
> Operating humidity: 10~95%
> Operating temperature: -10~50°C

Management
> Configuration: browser/phone/auto-provision
> Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
> Auto-provision with PnP
> Zero-sp-touch, TR-069
> Phone lock for personal privacy protection
> Reset to factory, reboot
> Package tracing export, system log

Network and Security
> SIP v1 (RFC2543), v2 (RFC3261)
> Call server redundancy supported
> NAT transverse: STUN mode
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: static/DHCP/PPPoE
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> UDP/TCP/DNS-SRV(RFC 3263)
> QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS
DSCP
> SRTP for voice
> Transport Layer Security (TLS)
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication using MD5/MD5-sess
> OpenVPN, IEEE802.1X
> IPv6

Package Features
> Package content:
- Yealink SIP-T48G IP phone
- Handset with handset cord
- Ethernet Cable (2m CAT5E FTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)

> Qty/CTN: 5 PCS
> N.W/CTN: 8.2 kg
> G.W/CTN: 9 kg
> Giftbox size: 324mm*263mm*128mm
> Carton Meas: 660mm*338mm*273mm
